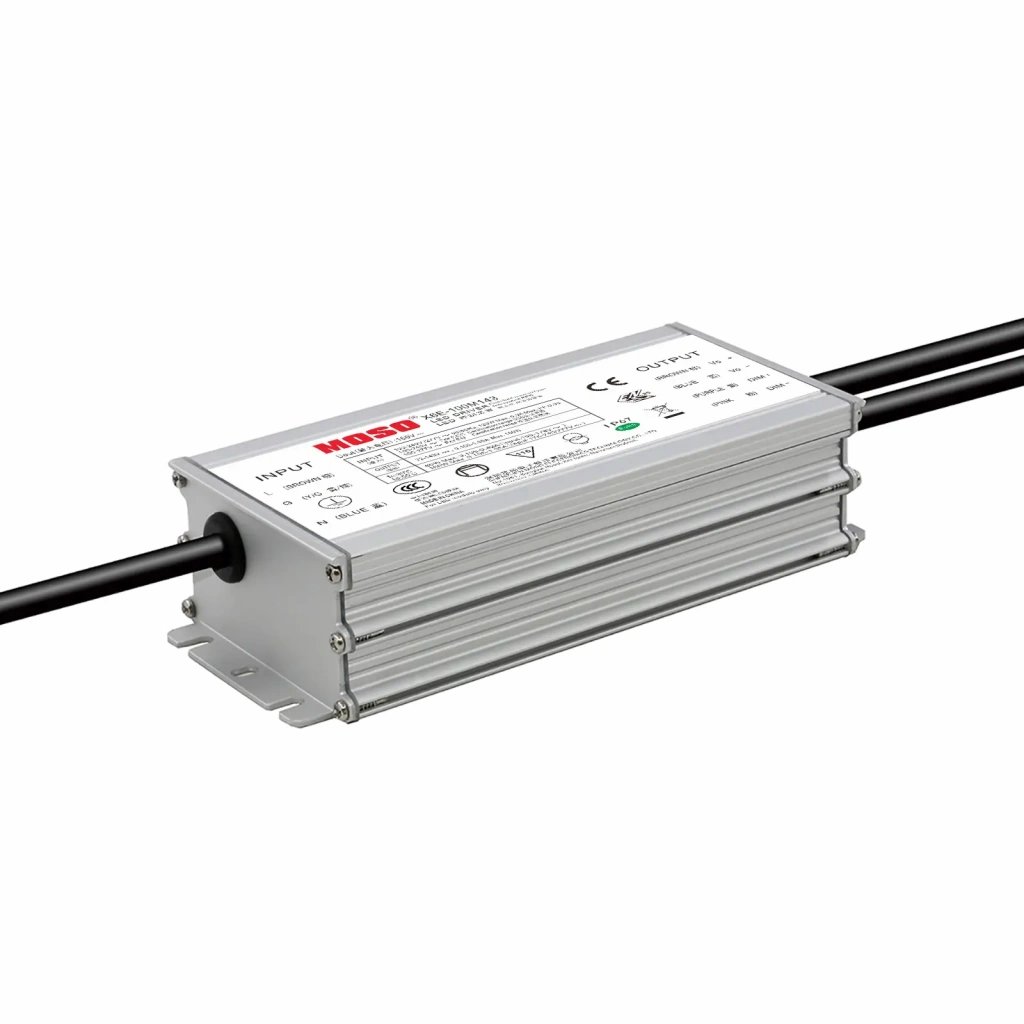

100 WATT MOSO X6E-100M143TD 100W Programlanabilir LED Driver

MOSO X6E-100M143TD | 100W Programlanabilir IP67 LED Driver

MOSO X6E-100M143TD, dış mekân ve endüstriyel aydınlatma projeleri için tasarlanmış 100W programlanabilir sabit akım LED driver modelidir. 90–305V AC geniş giriş voltaj aralığı, farklı şebeke koşullarında kararlı ve güvenli çalışma sağlar. 72–143V DC çıkış voltajı ve 0.7–1.05A ayarlanabilir çıkış akımı, farklı LED armatürlerle tam uyum sunar.

0-10V, PWM ve zamanlayıcı destekli 3-in-1 dimleme, Dim-to-Off ve Constant Lumen Output (CLO) özellikleri sayesinde uzun süre sabit ve kontrollü ışık performansı elde edilir. IP67 koruma sınıfına sahip metal kasa, ürünü toz, nem ve suya karşı tamamen dayanıklı hale getirir.

Yıldırım darbesine karşı 4kV / 6kV surge koruması, kısa devre, aşırı gerilim ve aşırı sıcaklık korumaları ile yüksek güvenlik sunar. 50.000 saat çalışma ömrü ve 5 yıl garanti, MOSO X6E-100M143TD’yi yol, sokak, tünel, projektör ve high-bay aydınlatmaları için ideal bir çözüm haline getirir.

X6E 100 WATT PROGRAMMABLE DRIVER

100 WATT PROGRAMLANABILIR DRIVER


The X6E series is outdoor programmable LED driver that operates in constant current with high PF value and full power input voltage range 176~305Vac model, the X6E series also provide multiple isolated dimming controls, Dim-to-Off. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability. It provides extreme durability with an IP67 rating and extends product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit and over temperature to ensure low failure rate.

• Universal input voltage / Full range: 90~305Vac;
• Isolate constant power design
• Constant power design, output current programming adjustable;
• (Mtypes) off-line programmable, (V types) output current adjustable by built-in potentiometer;
• 3-in-1 dimmable: 0~10Vdc, PWM, Positive and negative logic, Timer dimming, Dim-to-off;
• Programmable Constant Lumen Output (CLO)
• Self adapting-midnight dimming;
• Output and Dimming Signal Isolating;
• Surge protection: 4KV line-line, 6KV line-earth;
• Protections: input / UVP output SCP, OVP, OTP;
• IP67design for indoor and outdoor applications;
• Suitable for dry / damp / wet locations;
• 5years warranty. Application
• Suitable for LED roadway lighting, industrial lighting, landscape lighting, etc

Application
Road and street lighting,
Tunnel lighting Area and flood lighting High-bay lighting


Application
Road and street lighting,
Tunnel lighting Area and flood lighting High-bay lighting

Model Number	InputVoltage Range (Vac)	MAX Output Power (W)	Output Voltage Range (Vdc)	Full Power Output Current Range (A)	Default Current(A)	Eff. (Typ.)	PF(Typ.)	THD(Typ.)
X6E-100M143TD	176~305	100	72 - 143	0.7 - 1.05	0.70	91%	0.97	5%



Life Time

50000Hrs

75℃ @230Vac, 100%Load

Dimensions

(L*W*H)mm

138*68*35 or 133*68*37
