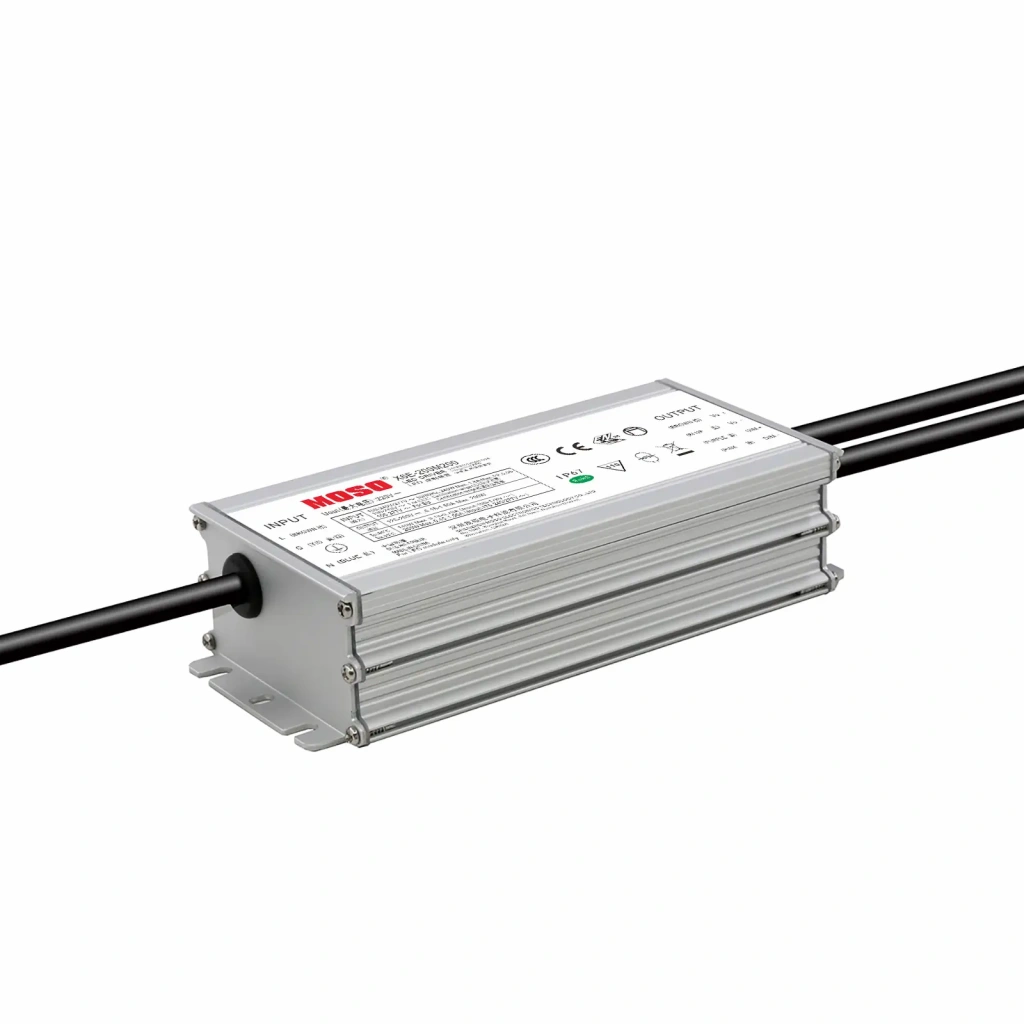

200 WATT DRIVER X6E-200M 286TD PROGRAMMABLE MOSO DRIVER

200 WATT X6E200W Programmable Driver

The X6E series is outdoor programmable LED driver that operates in constant current with high PF value and full power input voltage range 176~305Vac model, the X6E series also provide multiple isolated dimming controls, Dim-to-Off. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability. It provides extreme durability with an IP67 rating and extends product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit and over temperature to ensure low failure rate.

• Universal input voltage / Full range: 90~305Vac;
• Isolate constant power design
• Constant power design, output current programming adjustable;
• (Mtypes) off-line programmable, (V types) output current adjustable by built-in potentiometer;
• 3-in-1 dimmable: 0~10Vdc, PWM, Positive and negative logic, Timer dimming, Dim-to-off;
• Programmable Constant Lumen Output (CLO)
• Self adapting-midnight dimming;
• Output and Dimming Signal Isolating;
• Surge protection: 4KV line-line, 6KV line-earth;
• Protections: input / UVP output SCP, OVP, OTP;
• IP67design for indoor and outdoor applications;
• Suitable for dry / damp / wet locations;
• 5years warranty. Application
• Suitable for LED roadway lighting, industrial lighting, landscape lighting, etc

Application
Road and street lighting,
Tunnel lighting Area and flood lighting High-bay lighting

Model Number	InputVoltage Range (Vac)	MAX Output Power (W)	Output Voltage Range (Vdc)	Full Power Output Current Range (A)	Default Current(A)	Eff. (Typ.)	PF(Typ.)	THD(Typ.)
X6E-200M2TD	100~277	200	156 - 286	0.7 - 1.05	0.70	92%	0.97	5%

 NOTES:
 [1]. M means 0-10V/PWM dimming.
 [2]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.
