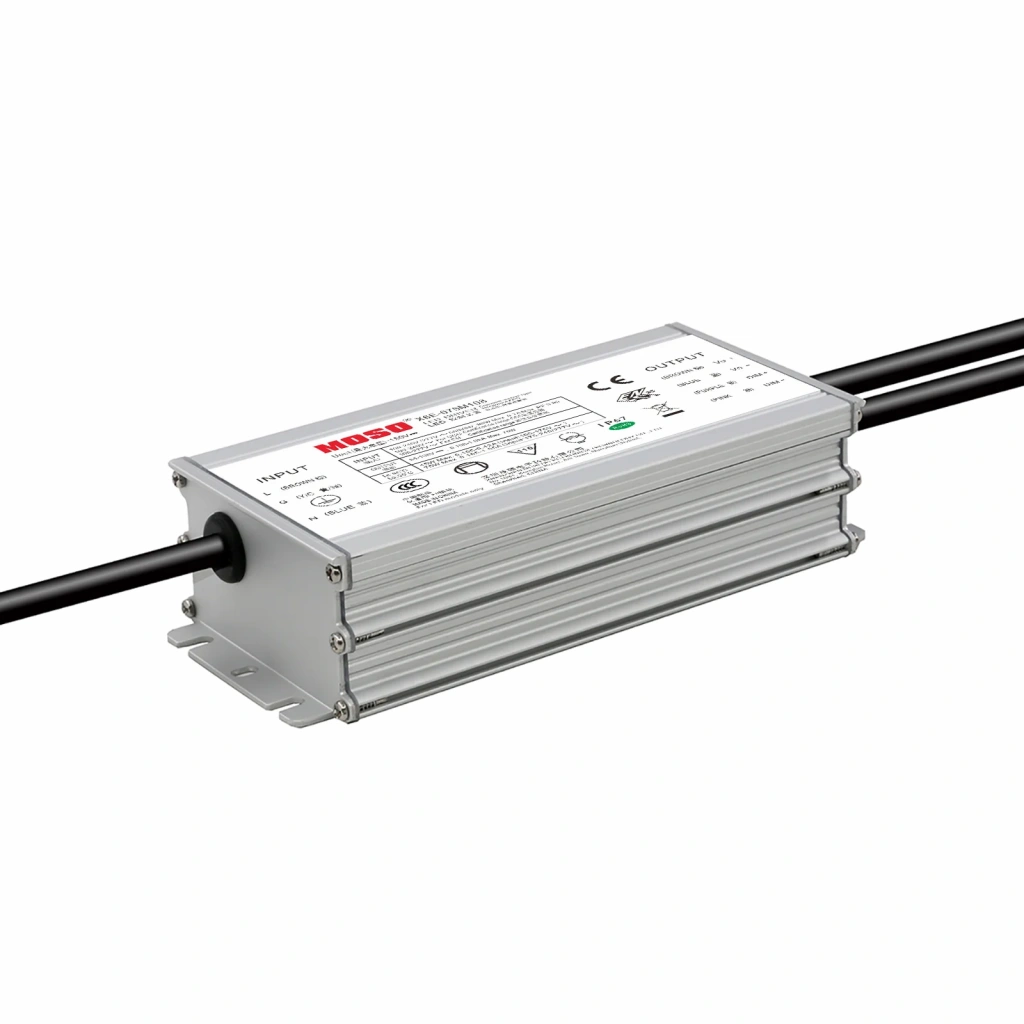

75 WATT DRIVER X6 E-075M 108TD PROGRAMMABLE MOSO DRIVER

Universal input voltage / Full range: 90~305Vac;
● Constant power design, output current programming adjustable;
● (Mtypes) off-line programmable, (V types) output current adjustable by built-in potentiometer;
● 3-in-1 dimmable: 0~10Vdc, PWM, Positive and negative logic, Timer dimming, Dim-to-off;
● (Mtypes)Constant lumen output ,daily log;
● Self adapting-midnight dimming;
● Output and Dimming Signal Isolating;
● Surge protection: 6KV line-line, 10KV line-earth;
● Protections: SCP, OVP, OTP;
● IP67design for indoor and outdoor applications;
● Suitable for dry / damp / wet locations;
● 5years warranty. Application
● Suitable for LED roadway lighting, industrial lighting, landscape lighting, etc

Application
Road and street lighting,
Tunnel lighting Area and flood lighting High-bay lighting

Model Number	InputVoltage Range (Vac)	MAX Output Power (W)	Output Voltage Range (Vdc)	Full Power Output Current Range (A)	Default Current(A)	Eff. (Typ.)	PF(Typ.)	THD(Typ.)
X6E-075M108TD	176~305	75	54 - 108	0.7 - 1.05	0.70	90.5%	0.97	5%
