150 WATT MOSO X6E-150M214TD 150W Programlanabilir LED Driver | IP67 0-10V PWM Dimmable

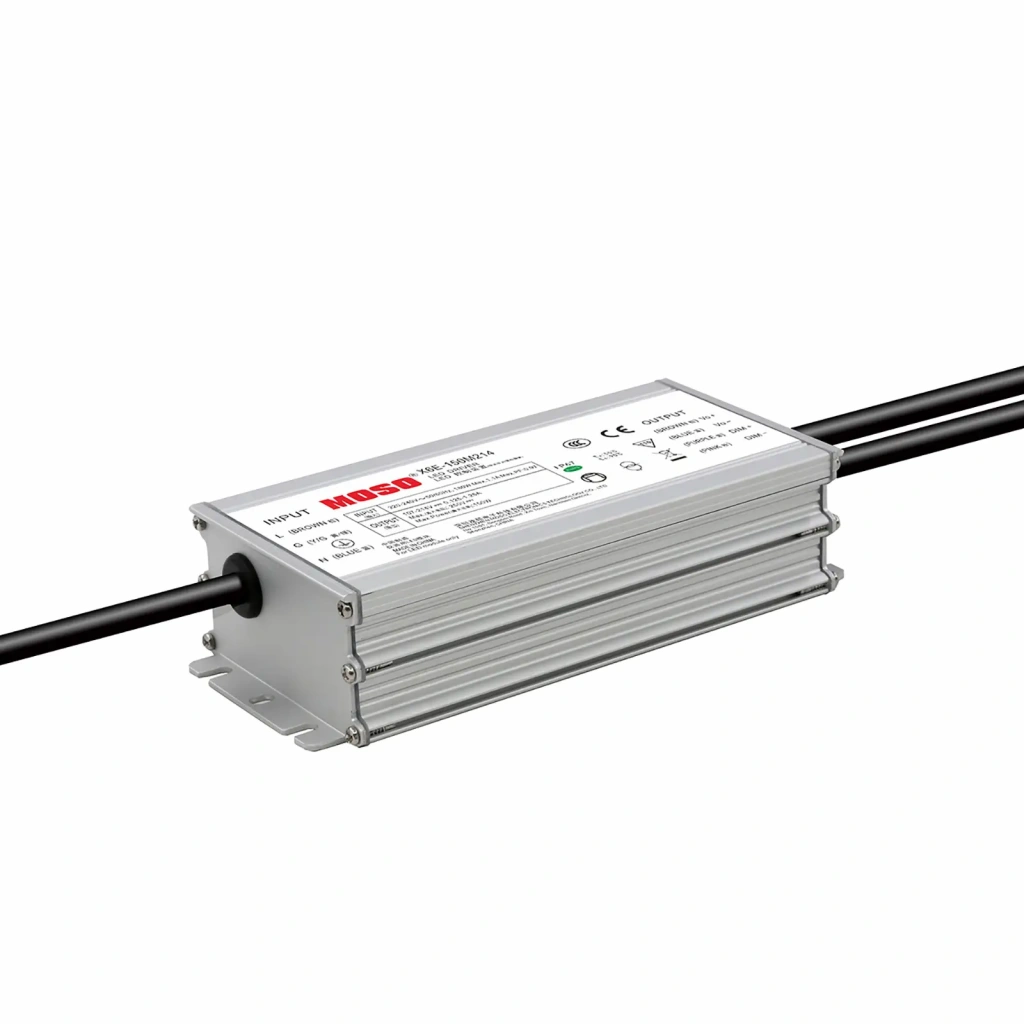

MOSO X6E-150M214TD | 150W Programlanabilir IP67 LED Driver

MOSO X6E-150M214TD, yüksek güç gerektiren dış mekân ve endüstriyel aydınlatma projeleri için geliştirilmiş 150W programlanabilir sabit akım LED driver modelidir. 90–305V AC geniş giriş voltaj aralığı, zorlu şebeke koşullarında dahi kararlı ve güvenli çalışma sağlar. 115–214V DC çıkış voltajı ve 0.7–1.05A ayarlanabilir çıkış akımı, farklı LED armatürlerle tam uyumluluk sunar.

0-10V, PWM ve zamanlayıcı destekli 3-in-1 dimleme, Dim-to-Off, Constant Lumen Output (CLO) ve gece yarısı adaptif dimleme özellikleri ile uzun süre sabit ve kontrollü ışık performansı elde edilir. IP67 korumalı metal kasa, ürünü toz, nem ve suya karşı tamamen dayanıklı hale getirir.

6kV/10kV yıldırım darbe koruması, kısa devre, aşırı gerilim ve aşırı sıcaklık korumaları sayesinde yüksek güvenlik sunar. %91.5 verimlilik, PF 0.97, 5 yıl garanti ile yol, sokak, tünel, projektör ve high-bay aydınlatmaları için profesyonel bir çözümdür.

150 WATT MOSO X6E 150W Programmable Driver

The X6E series is outdoor programmable LED driver that operates in constant current with high PF value and full power input voltage range 176~305Vac model, the X6E series also provide multiple isolated dimming controls, Dim-to-Off. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability. It provides extreme durability with an IP67 rating and extends product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit and over temperature to ensure low failure rate.

• Universal input voltage / Full range: 90~305Vac;
• Isolate constant power design
• Constant power design, output current programming adjustable;
• (Mtypes) off-line programmable, (V types) output current adjustable by built-in potentiometer;
• 3-in-1 dimmable: 0~10Vdc, PWM, Positive and negative logic, Timer dimming,
• Programmable Constant Lumen Output (CLO)
• Self adapting-midnight dimming;
• Output and Dimming Signal Isolating;
• Surge protection: 6KV line-line, 10KV line-earth;
• Protections: input / UVP output SCP, OVP, OTP;
• IP67design for indoor and outdoor applications;
• Suitable for dry / damp / wet locations;
• 5years warranty. Application
• Suitable for LED roadway lighting, industrial lighting, landscape lighting, etc

Application
Road and street lighting,
Tunnel lighting Area and flood lighting High-bay lighting

Model Number	InputVoltage Range (Vac)	MAX Output Power (W)	Output Voltage Range (Vdc)	Full Power Output Current Range (A)	Default Current(A)	Eff. (Typ.)	PF(Typ.)	THD(Typ.)
X6E-150M214TD	90~305	150	115 - 214	0.7 - 1.05	0.70	91.5%	0.97	5%

 NOTES:
 [1]. M means 0-10V/PWM dimming.
 [2]. All specifications are measured at 25℃ ambient temperature, input voltage 230Vac, and the typical value tested by full load, if no specific note.
